GR17


GR17
Delphi Harrison HR6 series
Most popular compressor in GM cars



Specification
TYPE SWASH PLATE
MOUNTING4-Lugs
REFRIGERANTR134a
DISPLACEMENT (cc)178
CYLINDERS10
OIL (cc)200 (PAG46)
WEIGHT(Kg)4.2 (w/o CLUTCH)
Max. REVOLUTION (rpm)9,000

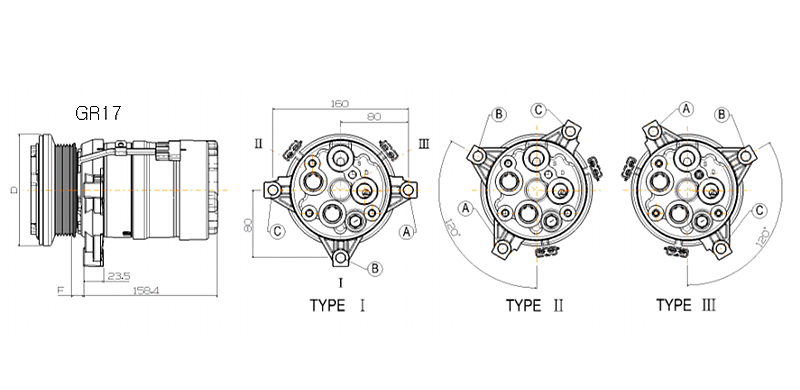

Dimension





Others
There are whole 13-types as the front head condition and coil connector position.
GD and GR has the different rear head shape each other.
Coil connector has two types of pin and spade.
